EPS (Electric Power Steering) resin worm wheel

Yielded from the experience of EPS worm wheel production, Mayata developed several nylon resin formulas, and applied on the products successfully. Meanwhile Mayata designed many kinds of steel core plates according to different demands of the whole worm. Especially the one-unit axle design with integrated forged shaft and core plate, it skipped the process of assembling the output shaft with the core plate. Make sure the verticality and torsional strength, present more smooth performance. Mayata covered steel core plate forging and resin wheel injection.

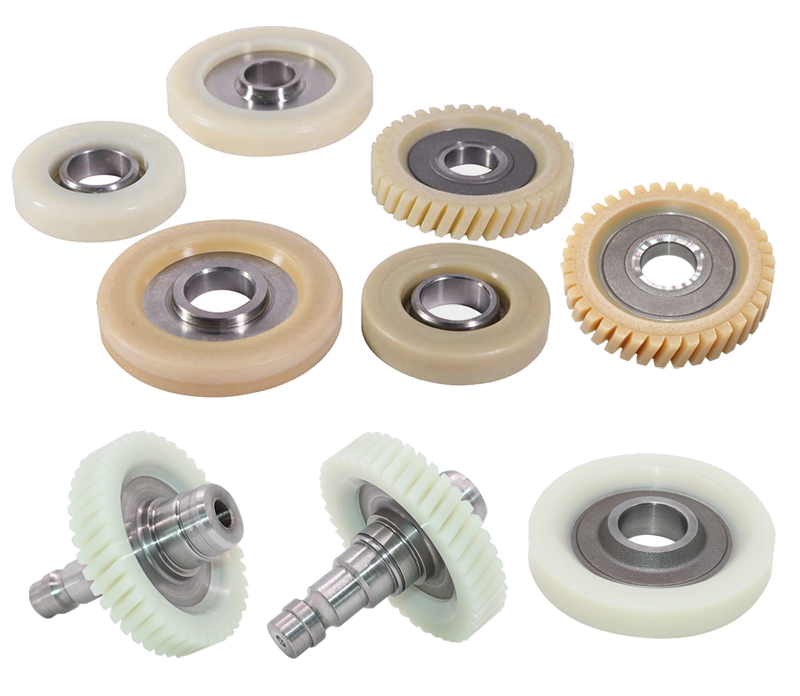

Many kinds of design of steel core plate

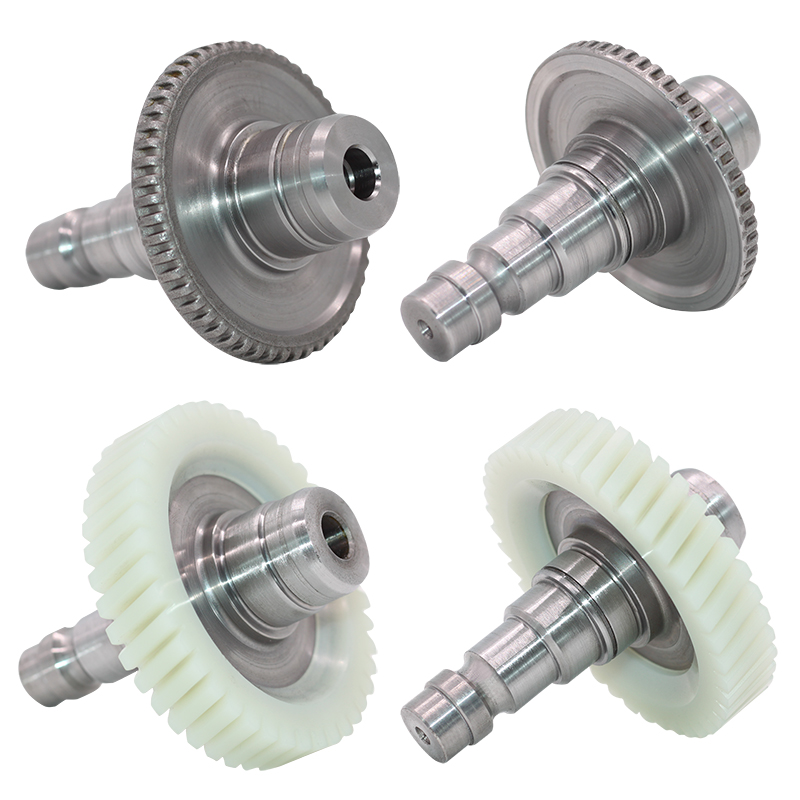

Direct teeth formed resin worm wheel with one-unit axle / integrated forged steel plate with shaft

Feature：

1. The teeth are injected directly. Precision grade 9-10.

2. Integrated forged the core plate and shaft, skipped the process of assembling the output shaft with the steel core plate, make the verticality and torsional strength.
